3.9 MM Pixel Pitch

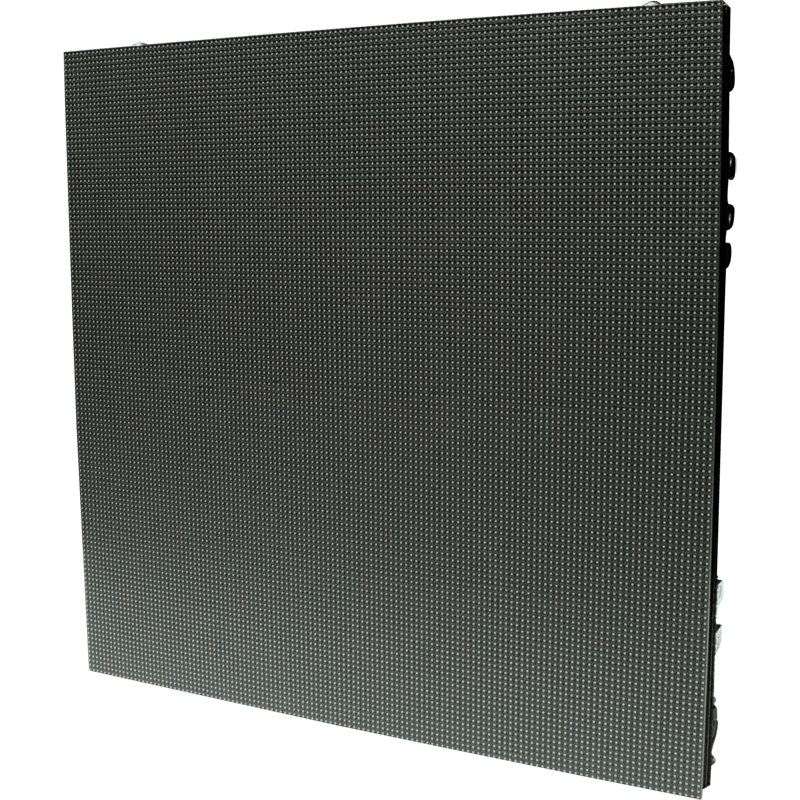

RXP 3 is a 3.9MM Pitch 500mm x 500mm robust LED video panel designed for Road Tours, Event Productions, Rental and permanent installations. RXP 3 is a high definition video panel with 4k resolution, that is full rear serviceable with easily accessed magnetic LED Modules and locks easy to mount on any vertical wall designed for outdoor/indoor use. The Panel features powerful magnets in the frame which assists you in the installation of the panels.

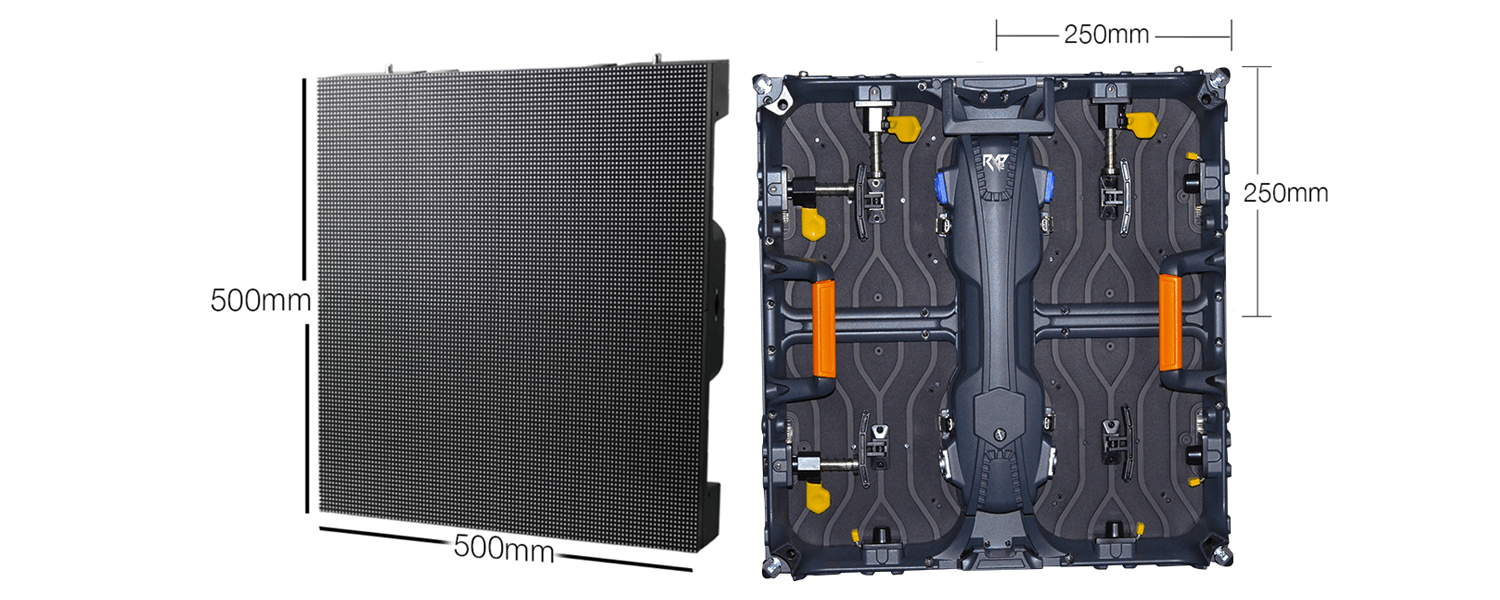

| Dimensions | 19.69 x 3.5 x 19.69 In (500 x 89 x 500 MM) |
| Cabinet Weight | 8 Kg |
| Module Size | 250 x 250 MM |
| Module Weight | 0.35 Kg |
| Light Source | Tricolor RGB SMD 2727, 50,000 Hrs Life Expectancy |
| Viewing Angle | 140 Degree |
| Contrast Ratio | 20,776 : 1 |
| Pixel | 250 x 250 |
| Pixel Pitch | 3.9 MM |
| Pixel Density | 65536dots/sqm |
| Display Refresh Rate | ≥OR 3840Hz |
| Maximum Viewing Distance | 10 ft (3M) |
| Control Protocol | Nova Star |
| Video Input ( Compatible ) | 60 Hz |
| Exterior Color | Black |
| Housing Material | Die-Casting Aluminum |
| Maximum Vertical Hang | 16 Panels |
| Maximum Horizontal Hang | 22 Panels |
| Transparency | 0% |
| Input Voltage | 100-240VAC, 50/60 Hz ( Auto-Ranging ) |
| Power Linking | 16 Units@ 120 V; 22 Units @ 208 V; 24 Units @ 230 V |
| Power & Current | 263 W, 2.18A @ 120V, 60 Hz |
| Power & Current | 140 W, 1.28A @ 208V, 60 Hz |
| Power & Current | 145 W, 1.16A @ 230V, 50 Hz |
| IP Rating | IP 35 |
| Power Connection | Edison ( Local) Plug to Seetronic ® Powercon® |
| Power Input | Seetronic® Powercon® |
| Power Output | Seetronic® Powercon® |
| Cable Length ( Signal Extension ) | 4 ft (1.2m) |
| Cable Length ( Power ) | 6 ft (1.8 m) |
| Cable Length ( Power Extension ) | 6 ft (1.8 m) |
| ◾ 1-RXP 3 | |
| ◾ 1 Seetronic® Powercon® Power cord | |
| ◾ 1 Seetronic® Powercon® Power linking Cords | |
| ◾ 1 Seetronic® Ethernet port® signal linking cords |
| Controller ( Required )* | Nova Star |
| Compatible Mounting Operations* | Rig Bar (0.5m, 1m) (Truss Mounting ) M12 Bolt/Clamp ( Rear Mounting ) |
| ◾ Sling* | |
| ◾ Clamps* | |
| ◾ Seetronic® Powercon® Cables* | |
| ◾ Seetronic® Ethernet port® Cables* | |
| * Not Included |
Screen Should be on Stand by Mode.
Set the light on the Master Mode than Select "Custom" and CC1, Mix the colors as required.
