UPC: 766429778493
Product Code: RP-1500
Product Code: RP-1500
Check Availability At

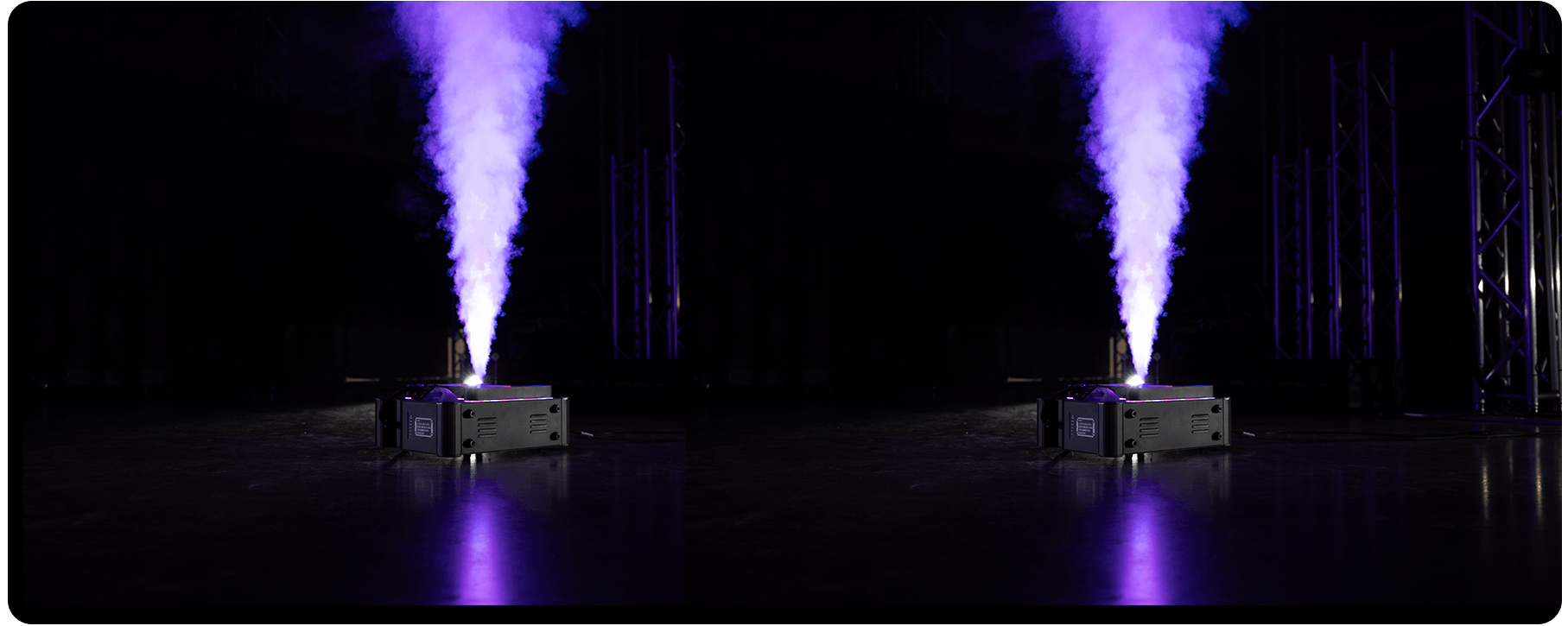

Presenting the powerful and versatile CO2 fogger with (21) 3W RGB LED, an exceptional device that delivers a robust vertical cylindrical smoke display with mesmerizing color-changing effects. This cutting-edge fogger is tailor-made for high-level indoor spaces and can even be placed horizontally, affording the option to mount it on a wall for added convenience. With built-in DMX and wireless remote control capabilities, users have seamless control over this CO2 LED Fog Machine, opening up a world of creative possibilities.
This CO2 Fog Machine with lights boasts impressive coordination potential, allowing it to sync with other fixtures to create stunning light shows that captivate audiences at large-scale events or expansive venues. Its quick warm-up time of just 45 seconds ensures a swift and efficient start to your lighting spectacle, while its impressive output of 1500 cubic ft per minute guarantees an impact that won't go unnoticed.
What sets this fixture apart is its unique design that enables the reservoir tank to be mounted in either the front or rear of the unit. This ingenious feature grants you the flexibility to direct the machine's output either upward or downward, catering to various lighting setups and stage configurations.
Despite its outstanding performance, the CO2 LED Fog Machine remains compact and robust, weighing approximately 47 lbs. This CO2 fog machine's sturdiness ensures its durability and reliability, even during prolonged and demanding use.
Weight | 7.4 KG (16.2lb) |
Dimensions | 14.75 x 17.625 x 7.625 In. |
Output | 1500 Cubic ft Per minute |
Warm-Up Time | 45 Sec |
Electronic Speed Control | Manual/DMX |
Control Options | DMX, IR Remote, Manual / Timer |
DMX Channels | 8 Ch |
Remote Type | Superior IR Technology |
Settings, Addressing & Programming | Control Panel with LED Display |
DMX Compliance | USITT DMX512/1990 or DMX512 Universal |
Color | Black |
Protection Rating | IP 20 |
Fog Tank | 2.4 liter |
AC Power | 90-240V, 50/60 V |
Power Consumption | 1500W |
Fuse | T 15 A |
Power & Current | 263 W, 3.5A @ 125V, 60 Hz |
EU Safety | EN 60598-1, EN 60598-2-1, IEC/EN 60825-1 |
EU EMC | EN 55103-1, EN 55103-2, EN 61000-3-2 |
Canadian Safety (US Model) | CAN/CSA C.22.2 No.250 |
CO2 Fogger | RP-LF1500 |
3-ft DMX Cable | P/N 893003 |
3-ft Power Cable | P/N 893004 |
IR Remote Control | P/N 893006 |
FOG Liquid* | P/N 893028 |
3M US Power Cable* | P/N 890113 |
*All Accessories Sold Separately |
Ac Power In/Thru | Power-Con In & Out |
DMX Data In / Thru | 3 - Pin Locking DMX |
Orientation | Upright/Upside Down |
Location | For Indoor Use Only |
Maximum Ambient Temperature ( Ta Max ) | 50 C ( 122 F ) |
Minimum Ambient Temperature ( Ta Min ) | 0 C ( 32 F ) |
Cooling | Conventional |
Heat Control | Electronic Cooling System Installed |
Note: - Please note that product specifications may change without prior notice*
Manuals | ||||
CO2 LED Fog Machine Manual version B, updated: Aug 15, 2021 | ||||
DMX Charts | ||||
CO2 LED Fog Machine DMX Chart version B, updated: Aug 15, 2021 |
