Overview

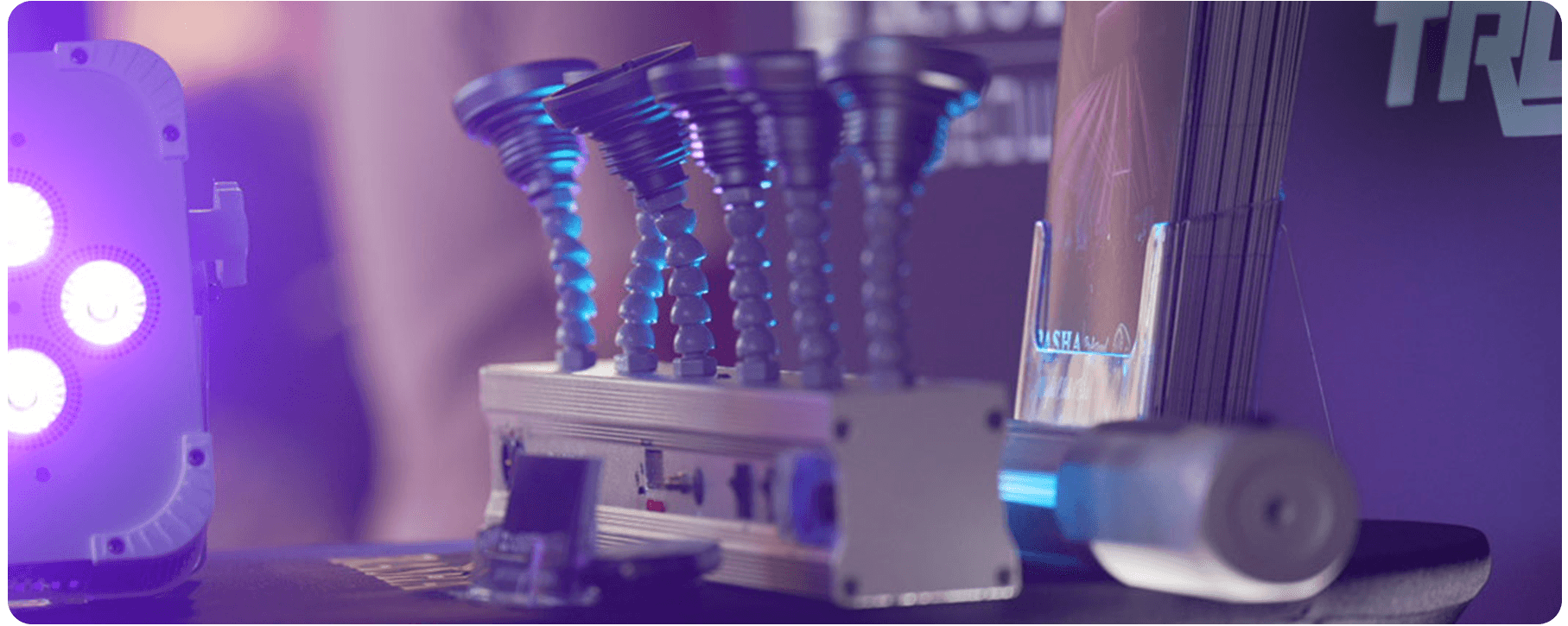

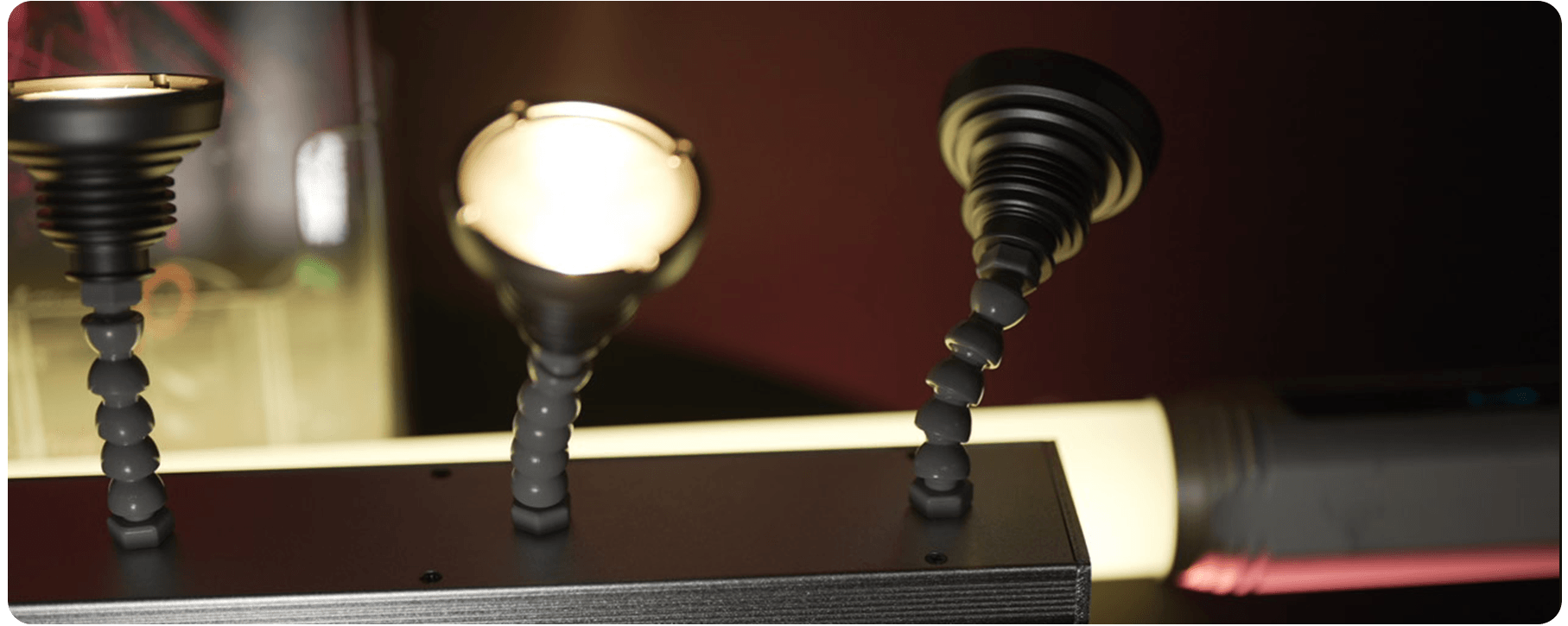

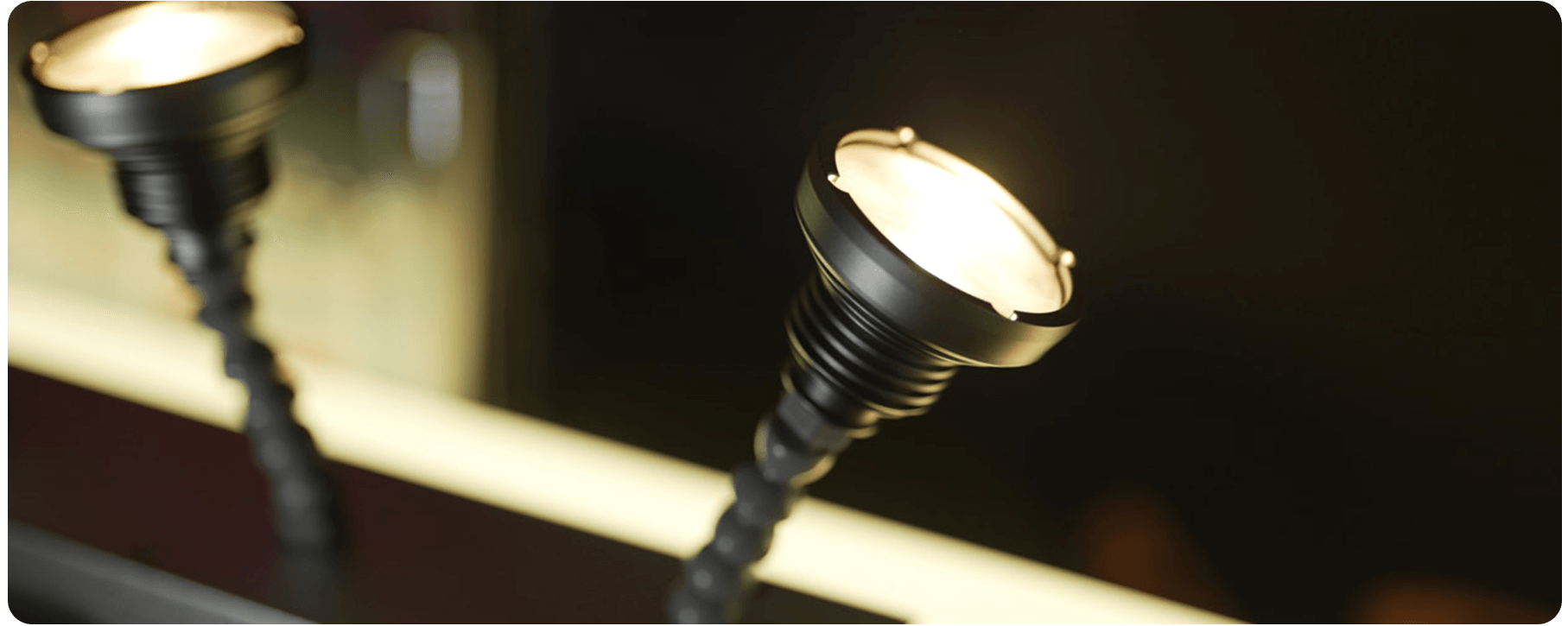

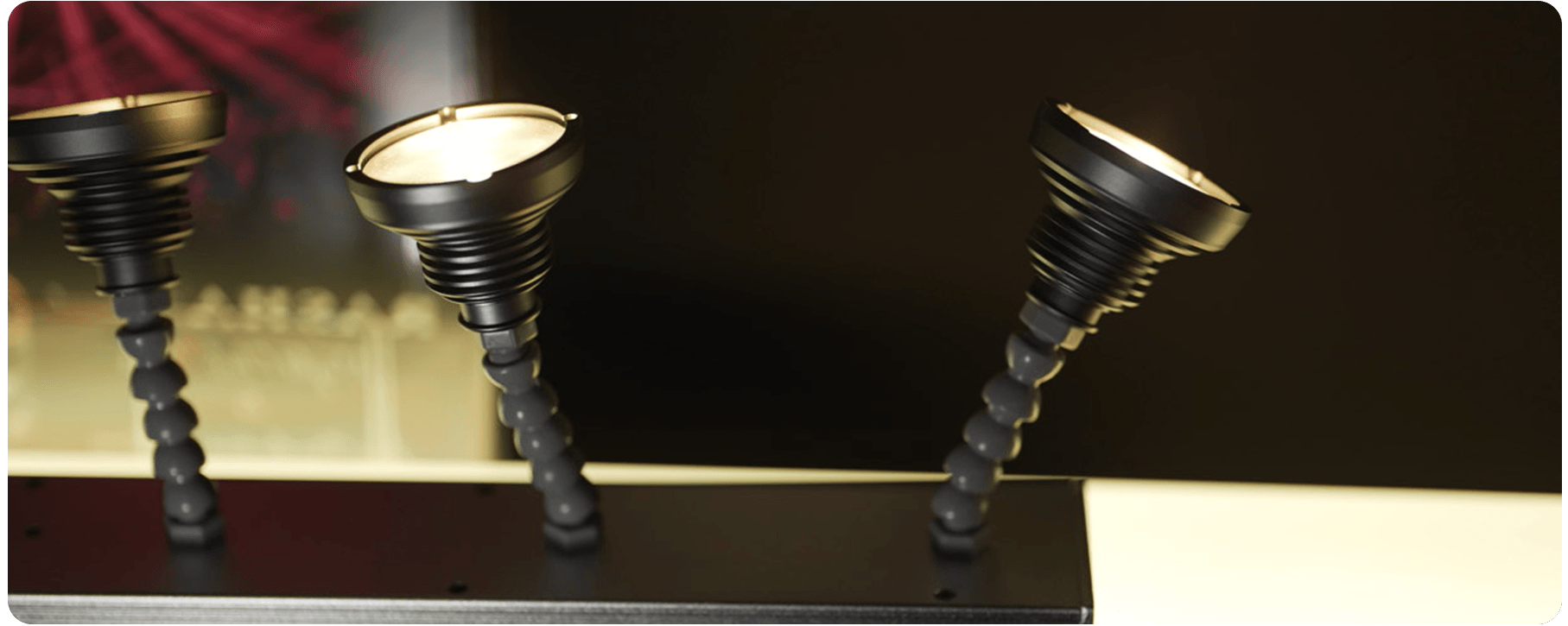

Bullet Pin Spot Bar”Zoom” is a new battery operated wireless DMX & Remotely controllable pin spot light. Bullet pin spot bar is a compact, refined version of traditional pin spotting with new user-friendly zoom, built-in battery, wireless DMX, and IR to further enhance your entire workflow and design process. Rasha bullet pin spot bar “Zoom” features 6 individual 3-20 Degree adjustable beam pin spotting light source, which will help to pin spot/project on 6 difference objects from 1 fixture. Built-in battery and wireless features greatly reduce the hassle of setup time. Bullet Pin spot bar ”zoom” has double the brightness than our nearest competitor.

Features


  • Easy battery operated pinspot
  • Can produce soft edge projection on any object,
  • 6 separate flexible heads which can bend the projection angles
  • Most easy, compact pinspot made ever.
  • User Friendly Interface

Technical Information



PHYSICAL

  • Weight 3 kg (6.6 lbs.)
  • Neck pipe 80x15x15mm(3.14x 0.59x 0.59 in.)
  • Head: 63x63x45mm(2.48x2.48x1.77 in.)
  • Dimensions 599.5 x61x 79.75 mm (23.6x 2.4x 3.14 in.)

DYNAMIC EFFECTS

  • Color mixing Warm White
  • Electronic dimming 10%/ 25%/50%/70%/100%
  • Electronic shutter effect Instant open and blackout

OPTICS

  • Light source 6x 10W Warm white LED Chips
  • LEDs Beam angle 3° Minimum
  • Minimum LED lifetime 50,000 hours (to >70% luminous output)*

CONTROL AND PROGRAMMING

  • Control options IR Wireless remote control/ 4 lights can control by 1 remote
  • DMX Channels 7/12
  • ID Code selector A,B,C,D ID code selector for each fixture
  • Remote type Superior IR Technology
  • Controllable distance 500 Feet
  • IR Remote channels 18 Channels

CONSTRUCTION

  • Materials Body/Head(anodized Aluminum))
  • Neck Bendable Plastic
  • Color Black/White/Silver
  • Basement Magnet Heavy duty magnet, Anodized
  • Protection rating IP 20

ELECTRICAL

  • AC power 100-240 V, 50/60 Hz
  • Power consumption 10W
  • Battery High-powered Lithium battery Battery
  • Battery backup time 7-10 Hours
  • Battery charging time 3 Hours

APPROVALS

  • EU safety EN 60598-1, EN 60598-2-1, I EC/EN 60825-1 EU
  • EMC EN 55103-1, EN 55103-2, EN 61000-3-2
  • Canadian safety (US model) CAN/CSA C.22.2 No. 250

ACCESORIES

  • Narrow beam angle kit P/N 892163
  • Medium beam angle kit P/N 892164
  • Wide beam angle kit P/N 892165
  • Road case P/N 901306
  • 20 or above stackable road case P/N 901308

THERMAL

  • Maximum ambient temperature (Ta max.) 50° C (122° F
  • Minimum ambient temperature (Ta min) 0°c (32°F)
  • Natural cooling system No fan inside

ORDERING INFORMATION

  • RP-BP02, Natural packing: P/N 820080
  • RP-BP02, White color packing: P/N 820081
  • RP-BP02 Flight/road case P/N 820082
