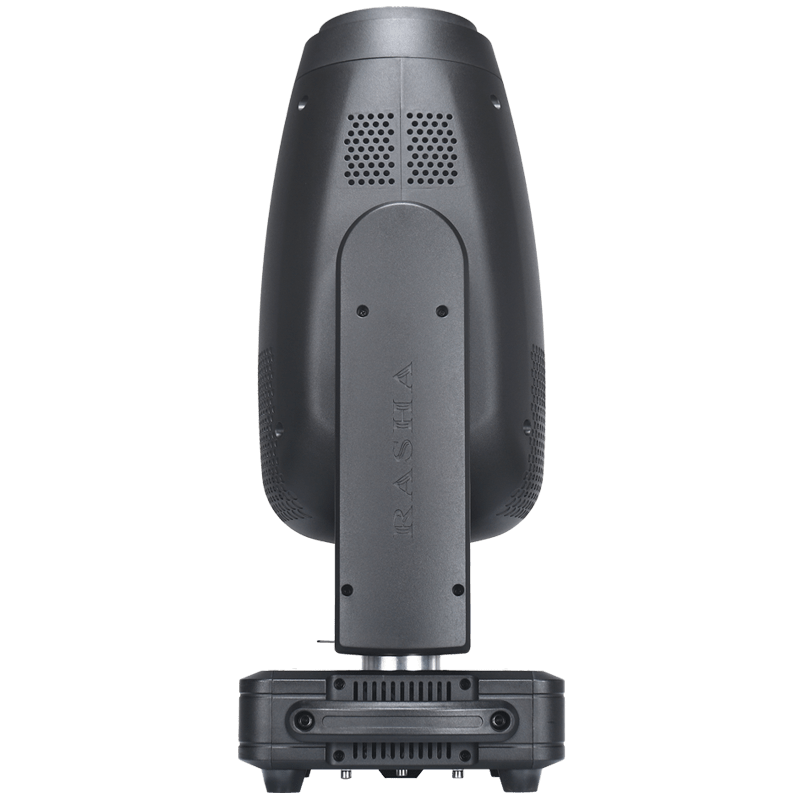

Rasha Professional

    Photon Hybrid

    UPC: 766429777663

    Product Code: Photon Hybrid

    All In One Hybrid Moving Head Light

    • CMY color mixing system
    • 7 dichroic filter color wheel with CTO, CT
    • 8 rotating Interchangeable Glass gobo
    • 9 Static stamp gobo
    • Animation wheel
    • Motorized Zoom  6°- 42° with Auto Focus
    • High-Speed Iris Range: 5%-100%
    • 5-Facet Circular Prism

    Play Video
    Photon Hybrid
    Photon Hybrid
    Photon Hybrid
    Photon Hybrid
    Photon Hybrid
    Photon Hybrid
    Photon Hybrid

    Photon Hybrid

    Product Code: Photon Hybrid

    All In One Hybrid Moving Head Light

    • CMY color mixing system
    • 7 dichroic filter color wheel with CTO, CT
    • 8 rotating Interchangeable Glass gobo
    • 9 Static stamp gobo
    • Animation wheel
    • Motorized Zoom  6°- 42° with Auto Focus
    • High-Speed Iris Range: 5%-100%
    • 5-Facet Circular Prism

    $1,765.00

    Total Price: $1,765.00 Reward Points:

    – +
    • Fast
      Shipping
    • Free Tech
      Support
    • Free 2-year
      Warranty
    Availability: Photon HybridIn-Stock

    Photon HybridMonthly Payments. No Hidden ChargesKnow More
    Buy from Reseller

    BUY FROM LOCAL RESELLER

    Check Availability At

    Our Expert Sales Team ready to help you!

    (951) 394-8480

    Photon Hybrid Email Us

    Introducing Photon Hybrid™, the ultimate all-in-one luminaire that combines Spot, Beam, and Wash capabilities into a compact and powerful package. Equipped with a high-power 6500K LED light engine, Photon Hybrid™ delivers an impressive output of 11000 lumens, ensuring stunning lighting displays for any event or venue.


    Photon Hybrid™ offers an array of cutting-edge features, including a 7 dichroic color filter system with CMY + CTO color mixing, providing a versatile range of colors and shades. The luminaire also boasts a variable color temperature, adjustable from 2700K to 6500K, allowing for precise and dynamic color control.


    With a motorized zoom ranging from 6° to 42°, Photon Hybrid™ offers convenient auto focus functionality, ensuring sharp and accurate lighting projections. Its comprehensive gobo options include 8 rotating interchangeable glass gobos and 9 static stamp gobos, providing endless creative possibilities for captivating lighting displays. Additionally, an animation wheel delivers a special dynamic water effect, adding a touch of magic to any lighting show.

    Photon Hybrid™ is equipped with advanced protocol support, including DMX, RDM (Remote Device Management), Art-NET, and sACN, ensuring seamless integration and control. It features 5-pin XLR and Neutrik TRUE1 power in/out connections, ensuring reliable and secure power connections for your lighting setup.


    A full-color 180° reversible LCD menu display with battery backup allows for effortless navigation and setup adjustments. Photon Hybrid™ is powered by a multi-voltage universal auto-switching power supply (100-240V), offering worldwide compatibility and convenience. The luminaire comes with a comprehensive 2-year ultimate warranty, ensuring peace of mind and reliability.


    In conclusion, Photon Hybrid™ sets a new standard for all-in-one luminaires, delivering exceptional performance, versatility, and reliability for any event or venue. With its advanced features, powerful output, and comprehensive warranty, Photon Hybrid™ is the ideal choice for lighting professionals seeking to create captivating and memorable lighting displays.

    Highlights :
    DMX channels: 25/36 Channel Mode
    Prism:1 bidirectional 5-facet rotating prism, prism can be positioned
    Focus: Motorized focus, auto focus
    5-100% electronic Iris
    Shutter: electronic, variable from 1-25HZ or random
    Dimming: 0-100% linear dimming
    Frost: heavy frost
    Zoom: 6°- 42 °Linear zoom
    Animation Wheel: special dynamic water effect
    Protocal: DMX 512, RDM, Artnet
    Advanced volatilization liquid cooling system

    What you will get?

    • 1 x User Manual
    • 2 x Omega brackets with 1/4 turn fasteners for rigging clamp attachment
    Technical Specification

    PHYSICAL

    Weight30 kg (66.14 lbs.)
    Minimum center-to-center distance in side-by-side installation660 mm (26.0 in.)
    Length (head)(489 mm (19.25 in.)
    Length (base)385 mm (15.15 in.)
    Width (base)380 mm (14.96 in.)
    Height (head straight up)701 mm (27.59 in.)
    Height (maximum)736 mm (28.97 in.)

    DYNAMIC EFFECTS

    Electronic shutter effectStrobe effect, pulse effects, instant open and blackout
    Electronic dimming0 - 100%, four dimming curve options
    Color mixingCMY, CTO, CT independently variable 0-100%
    Color wheel7 color filters plus open
    Gobo animationAnimation wheel, indexing, continuous rotation with variable speed and direction
    Rotating gobo wheel7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
    Static gobo wheel8 gobos plus open, wheel indexing, rotation and shake
    Iris0-100%
    ZoomMotorized
    Color temperature controlVariable 2700-6500K
    Prism1 rotating/indexing prisms (4-facet circular)
    FrostHeavy frost effect
    Pan540°, coarse & fine control and speed
    Tilt260°, coarse & fine control and speed
    FocusMotorized

    OPTICS

    Front lens diameter120 mm (4.75 in.)
    Zoom range6° - 42° (1:7)
    FocusAuto Focus
    Light source460 W LED engine
    Minimum LED lifetimeMinimum LED lifetime

    CONTROL AND PROGRAMMING

    Control optionsDMX
    16-bit control Dimming, CMY, CTO, CT, Zoom, Focus, Pan and Tilt
    Setting and addressingControl panel with backlit LCD display
    DMX channels25/36
    DMX complianceUSITT DMX512/1990
    RDM complianceANSI/ESTA E1.20
    Art-Net complianceArt-Net 4

    CONSTRUCTION

    HousingHigh-impact flame-retardant thermoplastic
    ColorBlack
    Protection ratingIP20

    ELECTRICAL

    AC power100-240 VAC (nominal), 50/60 Hz
    Power supply unitAuto-ranging electronic switch mode
    Half-cycle RMS inrush current at 230 V, 50 Hz21.8 A
    Typical power consumption, all effects static, zero light output 64 W
    Maximum total power consumption550 W
    Recommended MCB (Miniature Circuit Breaker) per IEC 60898/UL489/CSA C22.2 No. 5Type D

    THERMAL

    CoolingForced air (temperature-regulated, low noise)
    Maximum ambient temperature (Ta max.)40° C (104° F)
    Minimum ambient temperature (Ta min.)5° C (41° F)
    Maximum surface temperature, steady state, at 40° C ambient75° C (167° F)
    Maximum total heat dissipation, calculated, +/- 10%2920 BTU/hr.

    INSTALLATION

    Mounting points2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
    LocationDry location only, must be fastened to surface or structure
    OrientationAny
    Minimum distance to combustible materials0.2 m (8 in.)
    Minimum distance to illuminated surfaces 2.0 m (6.6 ft.)
    DMX and RDM data in/out5-pin locking XLR
    AC mains power inputNeutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connecto
    AC mains power throughput Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector

    ACCESORIES

    Conversion kits
    Framing Module (converts ERA 600 Profile to Performance)P/N 5125849-00
    Gobo Wheel 3 Effects Module (converts ERA 600 Performance to Profile)P/N 5131771-00
    Optical accessories
    CRI Boost Filter (CRI >79, installs on gobo wheel)MAR-91614058
    Power input cables
    Power Input Cable, H07RN-F, 2.5 mm2, 12 AWG, bare ends to TRUE1 NAC3FXW (female), 1.5 m (4.9 ft.) P/N 9161179
    Power Input Cable, H07RN-F, 2.5 mm2, 12 AWG, bare ends to TRUE1 NAC3FXW (female), 5 m (16.4 ft.)P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.)P/N 91610174
    Power relay cables, 16 A
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.)P/N 9161178
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.)P/N 91611785
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.)P/N 91611796
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.) P/N 91610170
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.)P/N 91610171
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.)P/N 91610172
    Power connectors
    Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female)P/N 91611789HU
    Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male)P/N 91611788HU
    Installation hardware
    G-clamp (suspension with fixture hanging vertically downwards only)P/N 91602003
    Half-coupler Clamp
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only)P/N 91602007
    Safety Cable, SWL 60 kg,Black
    Safety Cable, SWL 60 kgSilver

    INCLUDED ITEMS

    Two omega brackets with 1/4 turn fasteners for rigging clamp attachment 2 x P/ N 91602001

    PHOTOMETICS

    Light engine luminous output53,000 lumens
    LED refresh rate3600 Hz
    Standard
    Fixture luminous output53,000 lumens
    CRI (Color Rendering Index)>70
    CQS (Color Quality Scale) >67
    TM-30 Rf (IES TM-30-15 Fidelity Index)>65
    TM-30 Rg (IES TM-30-15 Gamut Index)>96
    TLCI (Television Lighting Consistency Index)>45
    CCT6300 K (+/- 250 K)
    Peak Luminous Intensity1,102,000 cd
    With Optional CRI Boost Filter
    Fixture luminous output13,000 lumens
    CRI (Color Rendering Index)>79
    CQS (Color Quality Scale)>74
    TM-30 Rf (IES TM-30-15 Fidelity Index) >75
    TM-30 Rg (IES TM-30-15 Gamut Index)>98
    TLCI (Television Lighting Consistency Index) >56
    CCT6500 K (+/- 250 K)
    Peak Luminous Intensity783,000 cd

    CERTIFICATIONS / QUALIFICATIONS

    EU safetyEN 60598-2-17 (EN 60598-1), EN 62471, EN62493
    EU EMCEN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547
    US safetyUL 1573
    US EMCFCC Part 15 Class B
    Canadian safetyCSA C22.2 No. 166
    Canadian EMCICES-3 (B) / NMB-3 (B); ICES-5 (B) / NMB-5 (B)
    Australia/NZRCM
    Global CB Certification/IECEEIEC 60598-2-17 (IEC 60598-1)

    TYPICAL POWER AND CURRENT

    120 V, 60 Hz4.5 A, 550W, PF 0.994
    230 V, 50 Hz2.4A, 550 W, PF 0.967
    Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor

    CONNECTORS

    DMX and RDM data in/outLocking 5-pin XLR
    ArtNET PortXLR

    GOBOS

    Maximum image diameter19 mm (0.75 in.)
    Gobo materialBorofloat 33
    External diameter23.0 mm +0 / -0.2 mm (0.906 in. +0 / -0.008 in.)
    Maximum gobo thickness1.1 mm (0.04 in.)
    CoatingHeavy matted aluminum
